COMPOSITION:

24mm Recycled PET Fibre @ 200 Kgs per M3 density. Robust, light, no irritation, eco-friendly, washable, fade resistant, fireproof.

DIMENSIONS:

w:1800mm h:300mm d:24/12mm (+/-1mm)
w:2400mm h:300mm d:24/12mm (+/-1mm)

WEIGHT:

3kg.

NRC:

12mm = 0.85 (200mm spacing)
24mm = 0.90 (150mm spacing), 0.95 (200mm spacing)

(NRC = Noise reduction coefficient. A measure of a panel's overall sound reduction/absorption ranging from 0=zero to 1=100% absorption)

FIXING:

The baffles are easily suspended with wire suspension kits or customised to accept slotted channel

AVAILABILITY:

Made to order | 6-8 week lead time

FIRE RATING:

EN13501-12007 Class B

C-PROFILE (MODULE):

The system can be broken into individual units of 2400mm x 3000mm (or customised). Each unit consists of two parallel lengths of 41 x 41 x 1.5mm UNISTRUT (‘light’) - sold separately - and your allocated baffles. Channel lengths can be customised or joined for longer runs, baffle spacing can easily be adjusted to meet your projects acoustic and aesthetic demands.

U-PROFILE (SOLO):

The system enables effortless suspension of individual baffles using our easy-install U-Profile mounts and cable kits. It's ideal for challenging installations, retrofits, or where truly custom ceiling designs are needed.

APPLICATION:

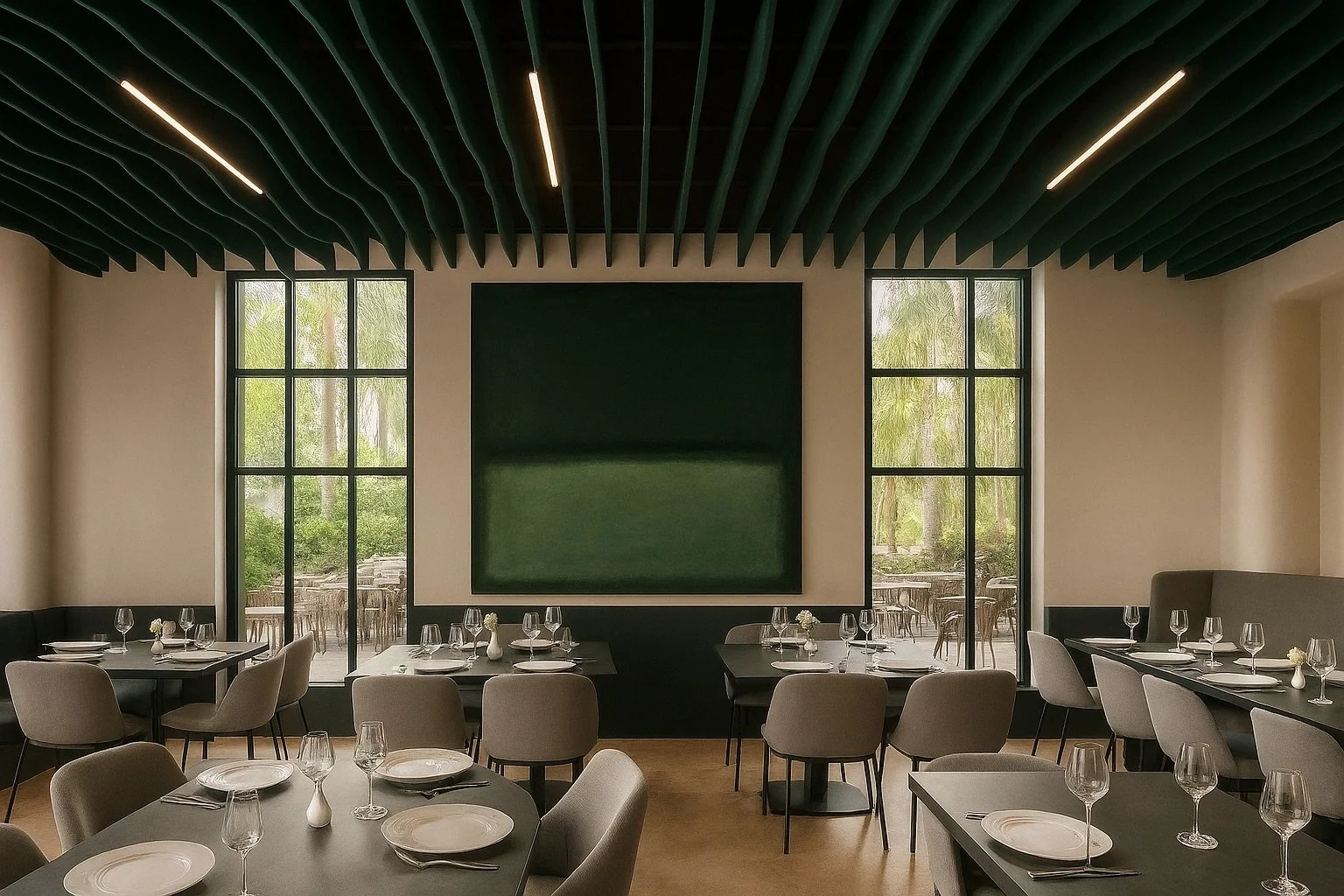

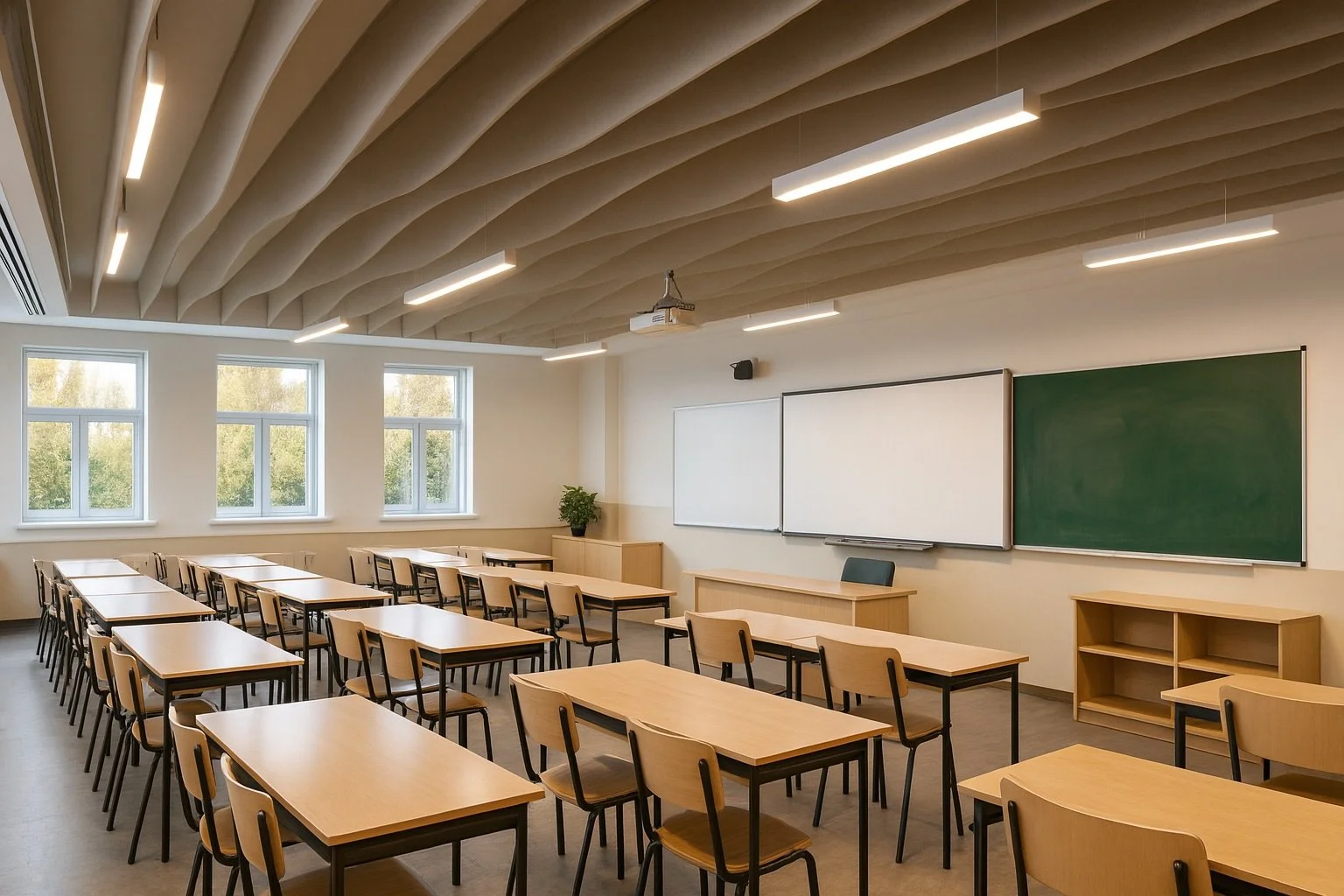

Suspended acoustic baffles for schools, fitness centres, gymnasiums, restaurants and bars providing unrivalled noise control. Light-weight and visually appealing for all high activity noisy environments.

SUSTAINABILITY:

Premium contains a minimum of 75% recycled polyester fiber (Post consumer, from PET bottle-flake), ensuring comparatively low embodied energy. Off-cuts and manufacturing waste is re-used or recycled wherever possible. Uncontaminated panels can be recycled.

FILES:

Product Datasheet

COLOUR:

60 Colours available

COVERAGE:

See here
